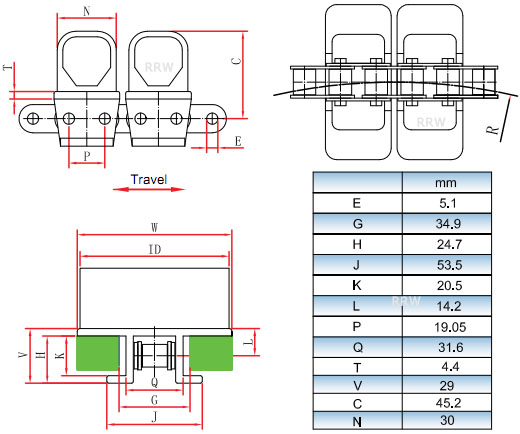

Snap-on 1873 D Gripper Chains

Material: POM Acetal Brown Plate, Rubber Closed Gripper Black / White, Carbon / Stainless Steel Roller Base Chain
Application: Side flexing gripper conveyor for PET bottle, Side grip elevators and lowerators, inline bottle inverter
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packaging: Roller Chain length 1.524 m = 80 pitch = 5 ft
One Top Plate through Two Pieces Base Steel Rollers
Snap-on Rubber Grip Closed 1873 D Gripper Chains

1873 D Gripper Chains Closed Rubber Snap-on Chains SS Roller Base

Carbon Steel Base Roller Chains ANSI 60 12A, Stainless Steel Base Roller Chains ANSI 60 12A, Pitch 3/4" 19.05 Single Strand Roller Base Chains, One Plastic Top Plate Snap-on through Two Pieces Rollers (i.e. 40 Hinges Plate with 80 Pitches Rollers for 5 ft Length)
D style gripper rubbers inserts are available in black or white NBR, EPDM, Neoprene

* 1873 D Style Gripper Chains supplied with molded rubber inserts, suitable for vertical conveyors of cans and bottles or radius conveyor, Beverage Applications, Bottle Conveying
Other series gripper retainers on stainless steel base chain:
1873 Tab Gripper Chain, 1873 D Style Gripper Chain, 1873 SideGrip Chain with Finger Jaw Gripper, 1873 G4 Gripper Chain, 1873 GV Gripper Chain

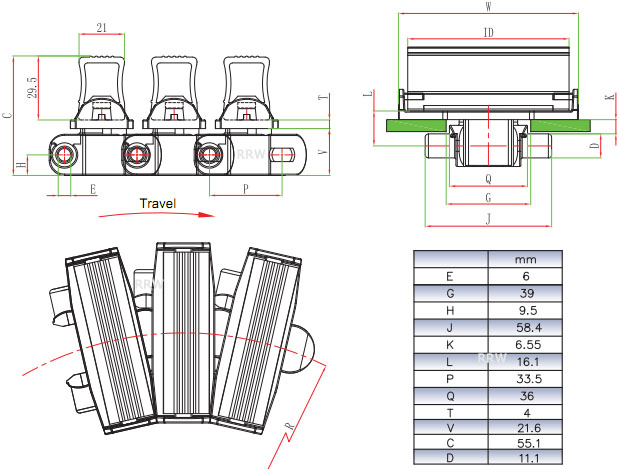

1875 Snap-on Closed Gripper Chains

Material: POM Acetal White Plate, Rubber Closed Gripper Grey, Side flexing Teeth Base Chain
Application: Side Flexing conveying lines for PET bottles, elevators and lowerators, 1875 D Snap-on Gripper Chains.
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packing: 1.524m (One Plate through 2 Pitch Bases)

* 1875 D Snap-on Chains Closed Gripper Chains with Plastic Base Clip Plate

* Further More Reference to.: 1873 Bottle Gripper Inverters Laydown Conveyors Elevators
