Guide Rail Brackets Small Bracket B01
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B01 | Small Bracket | Reinforced PA FV | ø 12 | Knob |
Guide Rail Brackets for Linear and Angular Positioning
Material: bracket and knob in reinforced polyamide PA FV (black).
Hexagonal insert bushing in nickel plated brass.
Eyebolt in stainless steel.

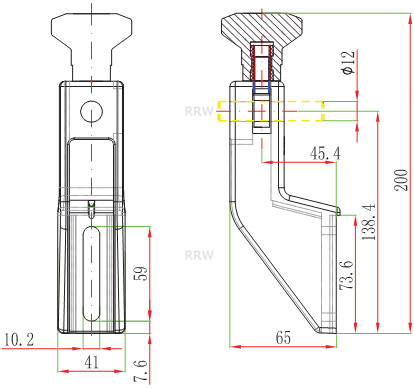

Guide Rail Brackets Fixed Bracket B02
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B02 | Fixed Bracket | Reinforced PA FV | ø 12 | Knob |
Material: bracket and knob in reinforced polyamide PA FV (black)
Hexagonal insert in nickel plated brass
Guide Rail Brackets Adjustable Bracket B03
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B03 | Adjustable Bracket | Reinforced PA FV | ø 12 | Knob+Eyebolt |
Material: bracket and knob in reinforced polyamide PA FV (black).
Hexagonal insert in nickel plated brass.
Eyebolt in austenitic stainless steel.
* Guide Rail Brackets Side Brackets are used in conjunction with adjusting rods, cross blocks and other guide rail holding components. The adjusting rod is mounted vertically via a bolt and washer.
Various attachments such as cross blocks, other adjusting rods, and adjusting rods with clamp for guide rails can be added.
Additional sizes and other models available upon request.
