HF 820 821 Rubber Top Chain High Friction Insert

Material: POM Acetal Chain Plate, Black NBR Rubber Top Insert, White Elastomer Insert
Application: Food and Beverage Conveying, Cans PET Bottle Lines, Incline Elevators
Packing: 80 Links = 10 Feet = 3.048 M, 26 Pitches (Pcs)/Meter Length

HF 820 Chain Rubber Top High Friction Surface NBR Elastomer Flite Top

HF 821 Rubber Top Chain High Friction Insert NBR Flite Top

HF 820 821 Rubber Top Chain High Friction Insert NBR Flite Top

Friction Top Chains HF820-K250, HF820-K325, HF820-K400, HF820-K500, HF820-K750

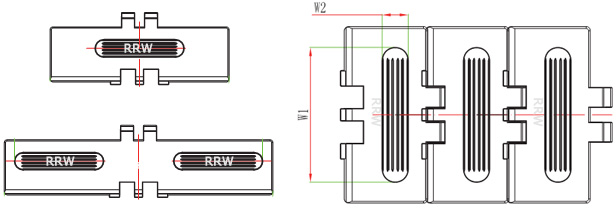

HF 820 Rubber Top Chains

Chain Code Plate Width(inch) Plate Width(mm) Backflex Radius Weight(kg/m)
HF 820-K250 2.50 63.5 50 0.85
HF 820-K325 3.25 82.6 50 0.95
HF 820-K350 3.50 88.9 50 0.97
HF 820-K400 4.00 101.6 50 1.05
HF 820-K450 4.50 114.3 50 1.13
HF 820-K500 5.00 127.0 50 1.25
HF 820-K600 6.00 152.4 50 1.35
HF 820-K750 7.50 190.5 50 1.55
HF 821-K750 7.50 190.5 50 2.55
HF821-K1000 10.0 254.0 50 3.05
HF821-K1200 12.0 304.8 50 3.35

* HF 820 821 Series Straight Running Chains, with Low Friction Acetal Resin, offers low coefficient of friction, and good wear resistance, available for direct contact with food
* Widely used in in-feed bottling lines, labeling machine, shrink wrapping, tray feeder, filling capping conveyor; 820 series can fit for side transfer with 880 series radius chain

820 Table Top Chains Sprockets Idler Wheels

Processing: Milling Machined (White), Plastic Injection (Black)
Material: Nylon PA6, Machined or Molded, Keyways Optional
Teeth No.: 15, 17, 19, 21, 23, 25
Bore Dia.: 20, 25, 30, 35, 40 (Shaft Sized Bore / Plain Bore)

Chains Sprockets Wheels
- Machined or Molded Injection
Table Top Slat Chain Sprockets 820 821 880 SS812 SS802 Chain Belt Wheel Idlers

Slat Chain Guide Profile
- UHMW PE Wear Strip Liners
Table Top 820 Slat Chain Guide Profile 821 880 SS812 SS802 Chain Tracks Wear Strip
