Side Flexing Flexible Chains 82.6 Cleated

Material: POM Acetal (LF White Low Friction), Cold Rolled Austenitic Stainless Steel Pin, Standard Aluminium Beam
Main Application: conveying lines for light items, perfume bottles, plastic bottles, beverage cans, convert elevating
Max Speed: 80m/min lubricated, 50m/min dry
Max Conveyor Length: 12m, Work Load.: 1250N
Min Radius: R 150

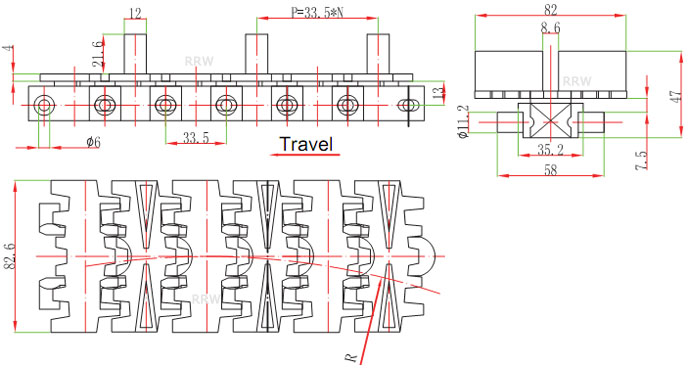

 Flexible Chains 82.6 Cleat

* Side Flexing Flexible Chains 82.6 Cleat is based on 85 mm conveyor beams in aluminium or stainless steel, with wide range of application for pallet handling and vertical wedge conveyors, ball valves, water meters, disk drives, pie packages, plastic bottles, beverage cans, products on pallets, paint cans, socks.
* Multi-flexing plastic flexible chains are widely used in conveyor system for transport, product buffering accumulation, PCB assembly line, paper converting, elevating, diverting, collating products, packs, packaging and filling line, conveyor for cosmetic bottles, etc.

Flexible Chains 82.6 Cleat

Chain Code Chain Pitch(mm) Chain Width(mm) Beam Width(mm) Tension(N)
Chain 63 25.4 63.0 65 900
Chain FT70 25.0 70.0 72 1000
82.6 R150 31.75 82.6 84 1250
Chain 82.6 33.5 82.0 84 1250
Chain 83 37.6 83.0 85 1250
Chain 103 37.6 103.0 105 1250
Chain 146 36.0 146.0 148 1250

Drive Gear Sprockets for Flexible Chains 83 mm

Processing: Milling Machined (White), Plastic Injection (Black)
Material: Nylon PA6, Machined Split or Molded Split, Keyways
Teeth No.: 9, 10, 11, 12, 13
Bore Dia.: 20, 25, 30, 35, 40 (Shaft Sized Bore / Plain Bore)

Chains Sprockets Profiles Brackets

Small Radius Side Flexing Flexible Chains 82.6-R150

Flexible Chains 82.6-R150
