821 Table Top Chains Straight Run

Material: POM Acetal Chain Plate (LF Brown Low Friction, AS Anti-static Black), Stainless Steel Pin / Plastic Pin Rod
Application: Food and beverage conveying, PET bottle lines, aluminum or steel cans packaging lines, label filler machine
Max Speed: 80m/min lubricated, 50m/min dry
Max Conveyor Length: 15m, Work Temp.: -40°C to 90°C
Packing: 80 links = 10 feet = 3.048 m, 26 pitches/meter
Plastic LFA 821 Table Top Chains Straight Running

821 Table Top Chains

Plastic Acetal LFA 821 Table Top Chains Straight Running

* LFA 821 Double Hinge Straight Running, heavy duty slat top chains, offers low coefficient of friction, and good wear resistance, available for direct contact with food
* Widely used in in-feed bottling lines, labeling machine, shrink wrapping, tray feeder, filling capping conveyor; 821 series can fit for side transfer with 882 series radius chain

Chain Code Width W(inch) Plate Width(mm) Backflex Radius Weight(kg/m)
821-K750 7.50 190.5 50 2.45
821-K1000 10.0 254.0 50 2.95
821-K1200 12.0 304.8 50 3.25
HF821-K750 7.50 190.5 50 2.55
HF821-K1000 10.0 254.0 50 2.99
HF821-K1200 12.0 304.8 50 3.35

821 Table Top Chains Sprockets Idler Wheels

Processing: Milling Machined (White), Plastic Injection (Black)
Material: Nylon PA6, Machined or Molded, Keyways Optional
Teeth No.: 19, 21, 23, 25
Bore Dia.: 20, 25, 30, 35, 40 (Shaft Sized Bore / Plain Bore)

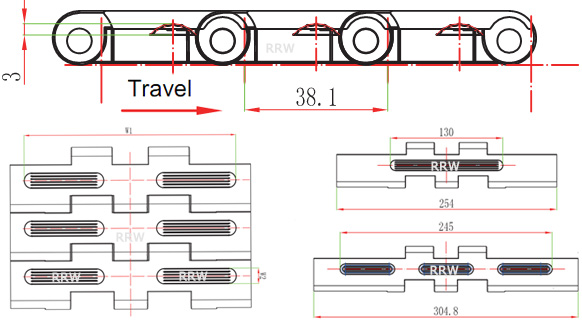

HF 821 Rubber Top Chains Friction Insert NBR/EPDM/Elastomer

821 Table Top Chains with Friction Rubber Top Insert for Incline Applications
HF 821-K750, HF 821-K1000, HF 821-K1200

HF821 Rubber Top Chains

Chains Sprockets Wheels
- Machined or Molded Injection
Table Top Slat Chain Sprockets 820 821 880 SS812 SS802 Chain Belt Wheel Idlers

Slat Chain Guide Profile
- UHMW PE Wear Strip Liners
Table Top 820 Slat Chain Guide Profile 821 880 SS812 SS802 Chain Tracks Wear Strip
