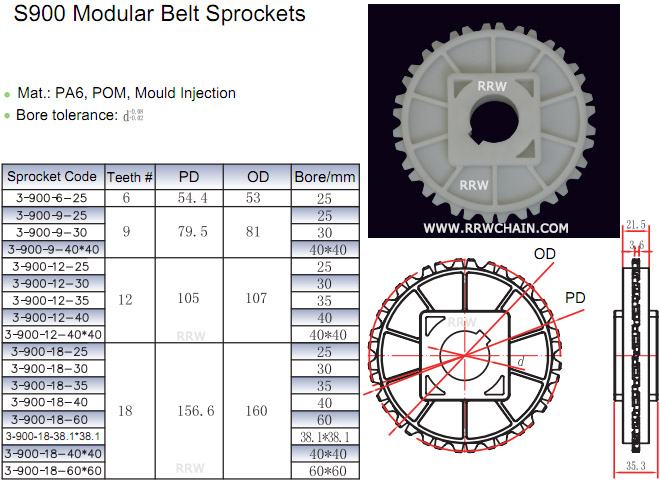

S 900 Modular Belts Sprockets

Material: POM Acetal or Nylon PA6
Processing: Mold Injection Plastic
Teeth No.: Z= 6, 9, 12, 18
Bore Dia.: Round Bore 25, 30, 40, Square 40*40, 60*60
Plastic Molded S 900 Modular Belts Sprockets

S 900 Modular Belts Sprockets Properties:

S 900 Flat Top Modular Belts, S 900 Flush Grid Modular Belts
S 900 Perforated Top Modular Belts, S 900 Raised Rib Belts

The one-piece sprockets made by PA or Acetal material are with good corrosion, high sprocket engagement and excellent wear-resistant properties
The PA6 nylon material to be used in applications where the temperature is above POM, where POM cannot stand the wear

PD=Pitch Diameter, OD=Overall Diameter
Sprockets with square bores are driven by matching square shafts, proven to be the most effective, economical, reliable, trouble free and simple. Square shafts transmit torque without the need for troublesome keys and keyways
Some sprockets are available with round bores for special applications.
