R-400 Modular Belts 5935 (0.75", 19.05mm)
Material: PP Polypropylene or POM Acetal Belt / Pin Rod
Application: Food Beverage Bottling Transportation,
Light Weight Conveying, Packaging Machinery Conveyors
Pitch: 0.75 Inch 19.05 mm; Weight: 6.9Kg/M2
Load: 10500N/M for POM Belt, 5840N/M for PP Belt
Open Area: 0%; Work Temp.: -40°C to 90°C
Packing: Roll in Request (Color in Coffee / White / Blue)
• R-400 Modular Belts Flat top thickness 8.7 mm
• Small Pitch 0.75" (19.05mm) reduces chordal action
• Conveyor Lengths : 3', 6', 7', 8', 9', 10',15', 20' are common lengths with others customized
• Modular Belts 5935 Flat top are suitable for application in lightweight products, can manufacturing handling; Raised rib for very smooth transfers; Friction surface for inclines and declines

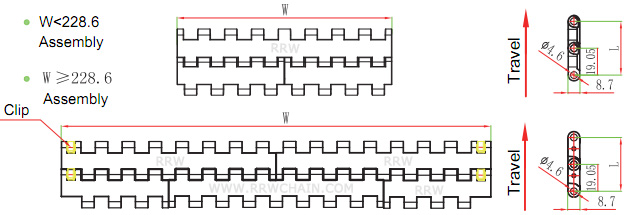

Standard Width for R-400 Modular Belts 5935: W(mm)=76.2*N
| W (mm) | 76.2 | 152.4 | 228.6 | 304.8 | 381.0 | 457.2 |
|---|---|---|---|---|---|---|
| W (mm) | 533.4 | 609.6 | 685.8 | 762.0 | 1066.8 | 76.2N |
Standard Width (Inch) : 3", 6", 9", 12", 18", 24", 30", 36", 42" and 45"
Other widths are available begin at 3" with 3/4" increments
Non-Standard Width Customized for R-400 Modular Belts: W(mm)=76.2*N+19*n
Sprockets Please See: R-400 Modular Belts 5935 Sprockets
Modular Belt 5935 Friction Top
Modular Belt 5935 Raised Rib
