R-300 Modular Belts 5936 (0.75", 19.05mm)

Material: PP Polypropylene or POM Acetal, PP/POM Pin Rod
Main Application: Food Beverage Bottling Transportation,
Pharmaceutical Conveyors, Packaging Machinery Conveyor
Pitch: 0.75 Inch 19.05 mm; Weight: 5.96Kg/M2
Load: 10500N/M for POM Belt, 5840N/M for PP Belt
Open Area: 16%; Work Temp.: -40°C to 90°C
Packing: Roll in Request (Color in Coffee / White / Blue)

• R-300 Perforated Flat Top Modular Belts Thickness 8.7 mm
• 5936 Vacuum Modular Belts Pitch 0.75" (19.05mm)
• Conveyor Lengths : 3', 6', 7', 8', 9', 10',15', 20' are common lengths with others customized
• R-300 Vacuum Perforated Modular Belts are suitable for air and water rinsing application in small products, pharmaceutics conveying

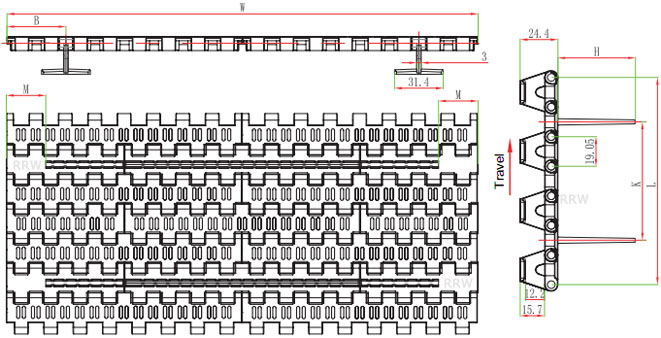

Vacuum Modular Belts 5936 with Flights / Hold-down Tabs

• Tabs Pitch from Belt Edge End B=19*N
• Flights Height: 20 / 25 / 30 / 40 / 50, Side-indent M starts at 24mm with Increments 19mm
• Series R-300 Modular Belts with Flights and Hold-down Tabs are suitable for Elevating or Inclined Conveyor, Positrack Tabs Make Sure Accurate Position of Belt (Where Wear Strips also Work Alternatively).

Standard Width for R-300 Modular Belts 5936: W(mm)=76.2*N

Standard Width (Inch) : 3", 6", 9", 12", 18", 24", 30", 36", 42" and 45"
Other widths are available begin at 3" with 3/4" increments
Non-Standard Width Customized for R-300 Modular Belts: W(mm)=76.2*N+19*n
Sprockets Please See: R-300 Modular Belts 5936 Sprockets
