R-2546 Spiral Modular Belt Flex SNB C 25.4mm Pitch 1 Inch
Material: POM Acetal, PP Polypropylene / PA6 Pin Rod
Application: Poultry Meat, Fruits, Vegetables, Beverages, Bread Baking, Spiral Coolers, Radius Conveyors in J-curves
Pitch: 1.0 Inch 25.4 mm; Weight: 6.8 Kg/M2; Load: 15000N/M for POM Belt;
Open Area: 55%; 2.3 Inner Width Radius; Work Temp.: -40°C to 98°C
Packing: Roll in Request (Color in Blue / Brown / White)
Flex SNB C Flush Grid
- Side Flexing Radius Belt
Flex SNB C Wear Part
- Wear Parts Each End
• R-2546 Side Flex Spiral Modular Belts SNB 25.4mm 1.0 Inch with Steel Reinforcement Links
• Side Modules Center Modules for S and J-curves radius conveyor
• Conveyor Lengths : 3', 6', 7', 8', 9', 10', 15', 20' are common lengths with others customized
• Modular Belts SNB C with curve guiding make it suitable for any curve applications, Flush Grid open area for optimum water flow

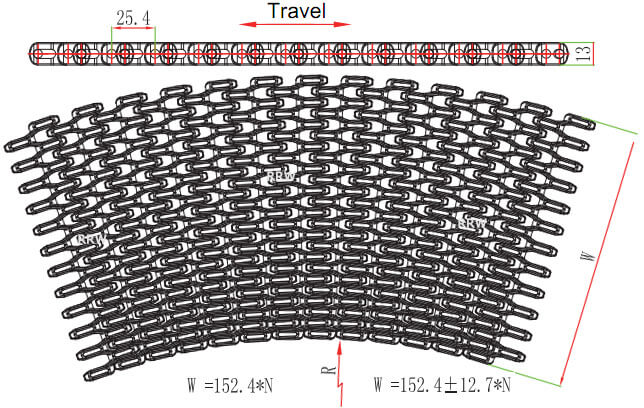

Standard Width for R-2546 Modular Belts SNB CR: W(mm)=152.4*N (+6mm WearPart)
| W (mm) | 76 | 152.4 | 228.6 | 304.8 | 381 | 457.2 | 609.6 | 76+12.7N |
|---|---|---|---|---|---|---|---|---|
| W (mm) | 82 | 158 | 234 | 310 | 386 | 462 | 614 | 76+12.7N+6 |
Non-Standard Width (Inch) : Begin at 76mm (+6mm) with 1/2 Inch 12.7mm increments

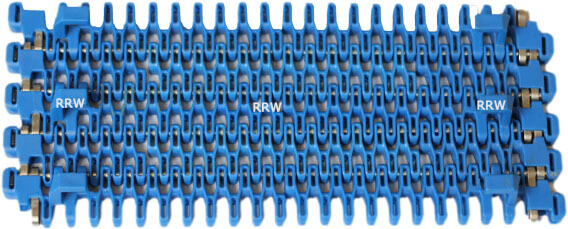

Spiral Modular Belt Flex SNB C Reinforcement Link Steel Pins Tabs
Material: POM Acetal Belt, Stainless Steel Pin Rod
Application: Poultry Meat, Fruits, Vegetables, Beverages, Bread Baking, Side-flex Spiral Radius Conveyors in J-curves
Pitch: 1.0 Inch 25.4 mm; Weight: 13 Kg/M2; Load: 24000N/M for POM Belt;
Standard Width for R-2546 Modular Belts SNB Reinforcement Links: W(mm)=310+152.4*N
| W (mm) | 310 | 386.2 | 462.4 | 538.6 | 614.8 | 691 |
|---|---|---|---|---|---|---|
| W (mm) | 767.2 | 843.4 | 919.6 | 995.8 | ... | 310+12.7N |
Non-Standard Width (Inch) : Begin at 310mm with 1/2 Inch 12.7mm increments
