R-1800 Modular Belts Roller Top RTB 400
Material: PP Belt, PA Nylon Rod, Stainless Steel Roller Axle
Application: Food and Beverages, Tyre, Packaging Machinery,
Low Back Pressure Accumulation 90 Degree Transfers
Pitch: 2.0 Inch 50.8 mm; Weight: 11.9 Kg/M2
Load: 26160N/M for PP Polypropylene Belt
Open Area: 18%; Work Temp.: 1°C to 90°C
Packing: Roll in Request (Color in Grey / White)
• Low Backline Pressure Heavy Duty RTB Modular Belt 400 Roller Top Flush Grid 2 Inch
• Conveyor Lengths : 3', 6', 7', 8', 9', 10',15', 20' are common lengths with others customized.
• Series 400 Modular Belts Roller Top are suitable for 0 - 90 Degree Transfers
• Transverse Modular Belts Roller Top Straight Running 0° and 90° Angle

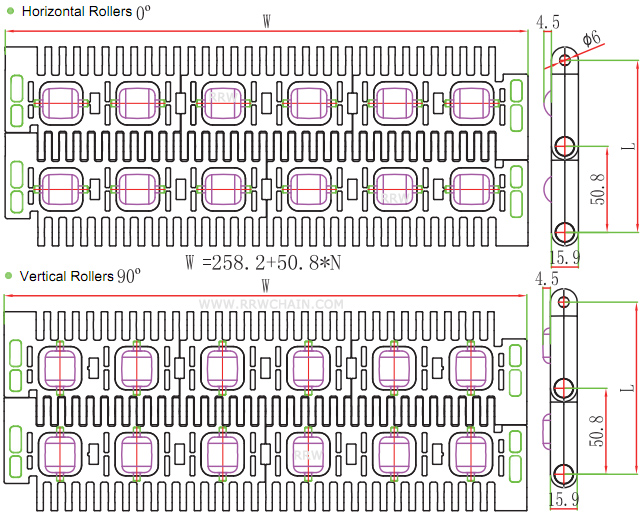

Standard Width for R-1800 Modular Belts 400 Roller Top: W(mm)=258.2+50.8*N
| W (mm) | 258.2 | 309 | 359.8 | 410.6 | 461.4 |
|---|---|---|---|---|---|
| W (mm) | 512.2 | 563 | 613.8 | 664.6 | 258.2+50.8N |
Standard Width (mm) : Starting at 258.2 mm with increments of 50.8 mm
Sprockets Please See: R-1800 Modular Belts 400 Sprockets
