R-1700 Modular Belts 7960 Pusher Positrack
Material: POM Acetal, PP Polypropylene / PA6 Pin Rod
Application: Poultry Meat, Fruits, Vegetables, Beverages,
Carton Container Cardboard Spiral Inclined Conveyors
Pitch: 1.5 Inch 38.1 mm; Weight: 7.8 Kg/M2
Load: 27000N/M for POM Belt; Work Temp.: -40°C to 98°C
Open Area: 50%; 2.3 Width Inner Radius
Packing: Roll in Request (Color in Blue / Green)
• R-1700 Modular Belts 7960 Pusher 1.5 Inch Positrack Lug Tabs for Accurate Guiding
• Side Modules Center Modules for S and J-curves radius conveyor
• Conveyor Lengths : 3', 6', 7', 8', 9', 10', 15', 20' are common lengths with others customized
• Modular Belts 7960 with curve guiding make it suitable for any curve applications, Flush Grid open area for optimum water flow

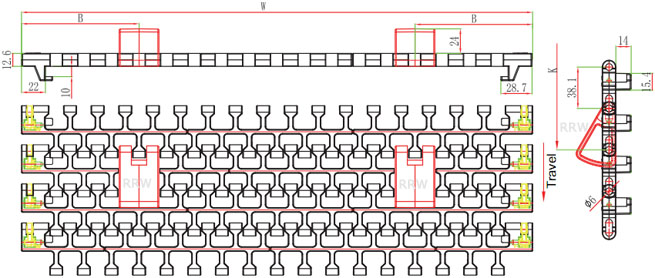

Standard Width for Modular Belts Pusher 7960: W(mm)=393.7+25.4*N
Positrack Lug Tabs Side Indents B=82.8+25.4*N, Pusher Pitch K=304.8+25.4*N
| W (mm) | 393.7 | 469.9 | 546.1 | 622.3 | 767.2 |
|---|---|---|---|---|---|
| W (mm) | 698.5 | 774.7 | 850.9 | 927.1 | 393.7+25.4N |
Standard Width (Inch) : Begin at 393.7mm with 1 Inch 25.4mm increments
Sprockets Please See: R-1700 Modular Belts 7960 Sprockets
