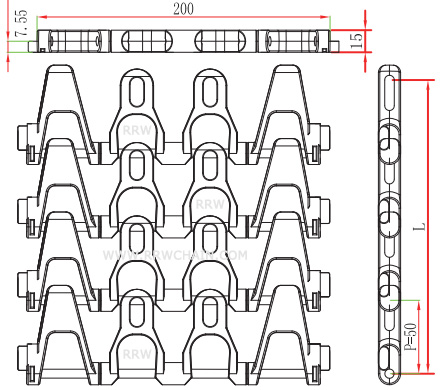

Sideflex Spiral Modular Belts 50.8mm 2 Inch
Material: PP Polypropylene Belt, Steel Pin Rod
Application: Food Beverage Radius Side Flexing Conveyor,
Bread Baking, Spiral Coolers, Radius Conveyors in J-curves
Pitch: 2.0 Inch 50.8 mm; Weight: 2.6Kg/M2
Load: 14000N/M for PP Belt, Work Temp.: 0°C to 90°C
Open Area: 43%; 2.0 Inner Radius
Packing: Roll in Request (Color in White)
• R-1100 Sideflex Spiral Modular Belts 50.8mm 2 Inch with Steel Reinforcement
• Side Modules Center Modules for S and J-curves radius conveyor
• Conveyor Lengths : 3', 6', 7', 8', 9', 10', 15', 20' are common lengths with others customized
• Modular Belts 1100 with curve guiding make it suitable for any curve applications, Flush Grid open area for optimum water flow
Standard Width for 1100 Flex Modular Belts: W(mm)=200+100*N
| W (mm) | 200 | 300 | 400 | 500 | 600 | 700 |
|---|---|---|---|---|---|---|
| W (mm) | 800 | 900 | 1000 | 1100 | 1200 | 200+100N |
Standard Width : Begin at 200mm with 100mm increments
Sprockets Please See: R-1100 Sideflex Spiral Modular Belts Sprockets
