Wear Strip Profiles Chain Tracks Curves for Modular Belts

Material: Polyethylene UHMW-PE Black / Green, machined UHMPWE curves
Application: MatTop Chain Modular Belts Curve Guide Tracks, Straight Tracks, Chain Belt Carry and Return Support Sections
Angle: α = 15º ~ 90º, curve profiles available in any angle
Chain Belts Type: R-800 Modular Belt, 2400 Modular Belt, R-1100 Modular Belt
Packing: Single Track or Multi-tracks, Straight in 1 piece, Curves in 2 Pieces/Set
Side-Flex MatTop Chain Tracks Curves for Modular Belts

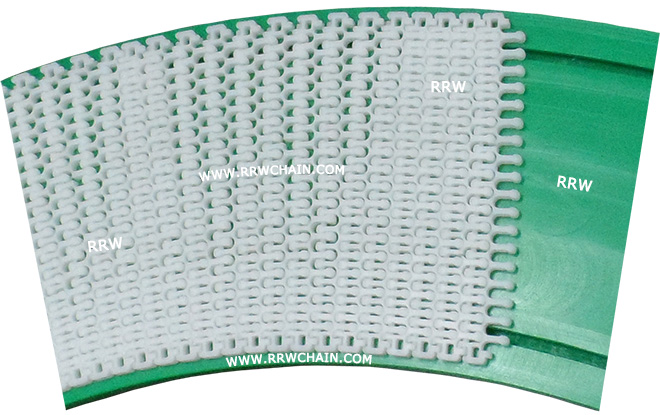

Modular Belts R-800 (Intra 2400) Curve Tracks

Side-flex MatTop Chain Corner Tracks Curves for Modular Belts

MatTop Chain Belts must be retained in the straights or curves under the wearstrip, machined UHMWPE curves including curve profiles are available in any angle and for any belt width. Standard 90 degree curves are available. Guiding profile should be used to guide the belt through the curve. UHMWPE (Ultra High Molecular Weight Polyethylene) wear-strips are recommended

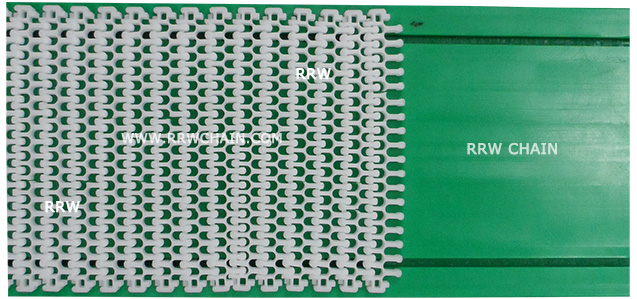

Modular Belts R-800 (Intra 2400) Straight Tracks

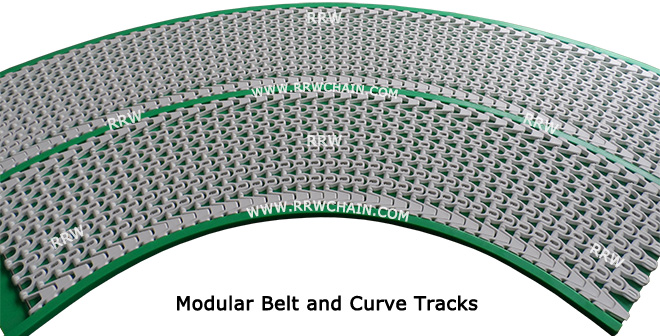

Chain Tracks Curves for Modular Belts R-1100

Side-Flex MatTop Chain Tracks Curves, Modular Belts Corner Tracks

Carry and Return Support Sections: MatTop Chain Belts must be retained in the straights or curves under the wearstrip, high performance machined UHMWPE curves including curve profiles are available in any angle and for any belt width. Standard 90 degree curves are available. Guiding profile should be used to guide the belt through the curve. UHMWPE (Ultra High Molecular Weight Polyethylene) wear-strips are recommended
