1873-G4 Gripper Chains Snap-on Belt

Material: POM Acetal Brown Plate, Rubber Top Gripper, Carbon / Stainless Steel Roller Base Chain 12A 60
Application: Side flexing gripper conveyor for PET bottles, elevating bottling and turnkey bottle inverter.
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packing: Roller Chain length 1.524 m = 80 pitch = 5 ft
One Top Plate through Two Pieces Base Roller Chain
Snap-on Finger Grip 1873-G4 Gripper Chains

1873-G4 Gripper Chains

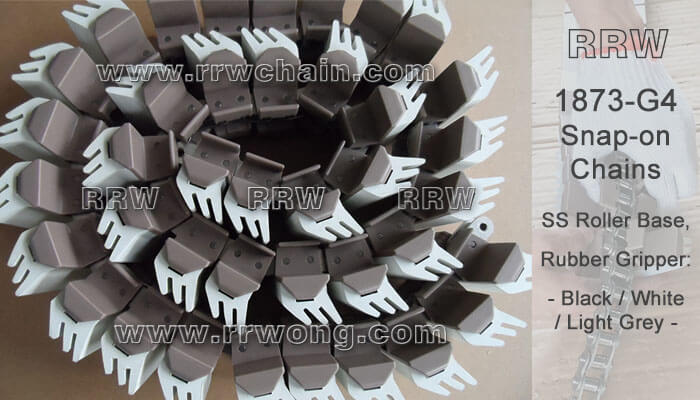

Snap-on Rubber Gripper Top 1873-G4 Gripper Chains SS Roller Base

- 1873-G4 Finger Gripper Chains supplied with molded rubber inserts, Base Roller Chains in CS Carbon Steel #60 12A, Stainless Steel Roller Chain ANSI 60 12A, used for side grip, vertical conveyor of cans or bottles
Chain Pitch 3/4" 19.05 (Single Strand Roller Base Chains), Chain width 3.25” (82,5mm) and 4.50” (114,3mm)

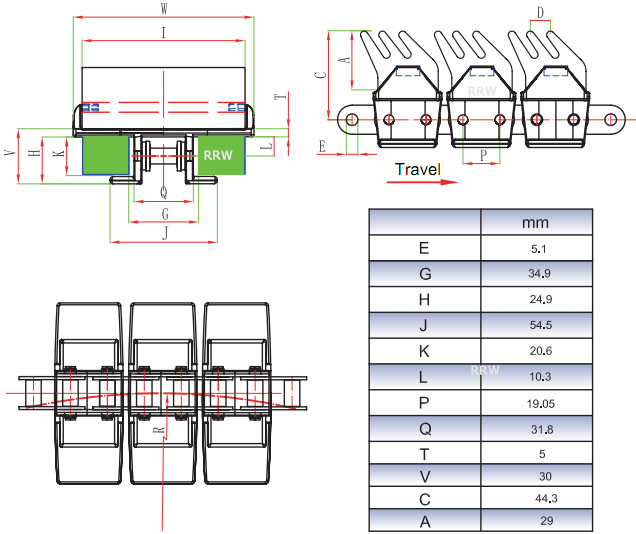

1873-G4 Finger Gripper Chains

Chain Code CS Chain Code SS Width(mm) Rubber(mm) Weight(kg/m)
1873 G4-K375 1873SS G4-K375 93.2 84 4.7

1873 G4 Gripper Chain Snap on Rubber
*1873 Steel TAB Gripper Chains supplied with molded rubber inserts, suitable for radius conveyor, Beverage Applications, Bottle Conveying
Other series gripper retainers on stainless steel base chain:
1873 Tab Gripper Chain, 1873 D Style Gripper Chain, 1873 Side Grip Chain with Finger Jaw Gripper, 1873 G4 Gripper Chain, 1873 GV Gripper Chain
Gripper rubbers are available in black, white or white grey NBR, EPDM, Neoprene

* Further More Reference Info.: 1873 G4 Bottle Gripper Chain Inverters Conveyors Elevators
