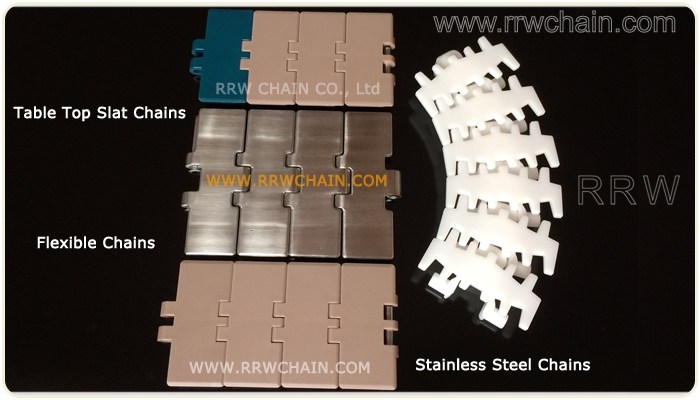

Table Top SS Slat Top Chains Flexible Chains Finger Chains
Material: POM Acetal (LF White Low Friction), Cold Rolled Austenitic Stainless Steel Pin
Applications: Conveying lines for PET bottles, yogurt, tissue paper, bottle cans packaging
* Side Flexing Table Top SS Slat Top Chains Flexible Chains conveyor beams in aluminum or stainless steel, wide applications for pallet handling and vertical conveyors, tissue paper handling, aerosol cans, plastic bottles, matches, cheese boxes, coffee and tea packages
* Multi-flexing plastic flexible chains are widely used in conveyor system for transport, product buffering accumulation, PCB assembly line, paper converting, elevating, diverting, collating products, packs, packaging and filling line, conveyor for cosmetic bottles, etc.
| Chain Code | Chain Pitch(mm) | Chain Width(mm) | Beam Width(mm) | Tension(N) |
|---|---|---|---|---|
| Chain 63 | 25.4 | 63.0 | 65 | 900 |
| Chain FT70 | 25.0 | 70.0 | 72 | 1000 |
| 82.6 R150 | 31.75 | 82.6 | 84 | 1250 |
| Chain 82.6 | 33.5 | 82.0 | 84 | 1250 |
| Chain 83 | 37.6 | 83.0 | 85 | 1250 |
| Chain 103 | 37.6 | 103.0 | 105 | 1250 |
| Chain 146 | 36.0 | 146.0 | 148 | 1250 |
* More detail specs please refer to: Flexible Plastic Chains ...
