1873 Snap-on Chains Roller Base
Material: POM Acetal (LF Brown Low Friction, Rubber Top Black), Carbon / Stainless Steel Roller Base Chain ANSI 60
Application: Side flexing conveyor for PET bottles, vertical and spiral conveyor, radius conveyor lines
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packaging: 1.524m=80pitch=5ft (1 Plate through 2 Pitches)

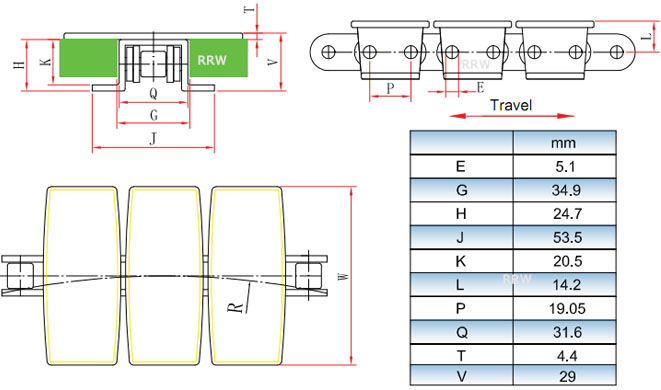

Side-flexing 1873 Snap-on Chains with Steel Roller Base Chain
| Chain Code CS | Chain Code SS | Width(mm) | Backflex Rad. | Weight(kg/m) |
|---|---|---|---|---|
| 1873-K325 | 1873SS-K325 | 82.6 | 150 | 2.20 |
| 1873-K450 | 1873SS-K450 | 114.3 | 150 | 2.30 |
| 1873-K600 | 1873SS-K600 | 152.4 | 150 | 2.50 |
| 1873-K750 | 1873SS-K750 | 190.5 | 150 | 2.60 |
| 1873-K1000 | 1873SS-K1000 | 254.0 | 150 | 2.80 |
| 1873-K1200 | 1873SS-K1200 | 304.8 | 150 | 3.10 |
* CS-Carbon Steel ; SS-Stainless Steel

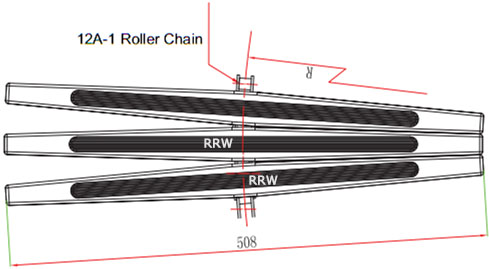

1873 Snap-on Chains with Bearing
Material: POM Acetal (LF Brown Low Friction, Rubber Top Black), Carbon / Stainless Steel Roller Base Chain ANSI 60
Application: Side flexing gripper conveyor for PET bottles, elevators and lowerators, turn-key bottle inverter lines
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packaging: 1.524m (One Plate through 2 Pitches)
| Chain Code CS | Chain Code SS | Width(mm) | Backflex Rad. | Weight(kg/m) |
|---|---|---|---|---|
| 1873-K2000-Z | 1873SS-K2000-Z | 508 | 150 | 6.95 |
1873 Snap On Chains Rubber Top with Bearing
